YHXe series Threading of explosion-proof box
Sitepath：Home > Products > Explosion-proof pipe fittings > Explosion-proof box threading
YHXe series Threading of explosion-proof boxes, the use of die-casting aluminum alloy or steel manufacturing, the surface of plain spray paint, apply a mixture of the danger of explosive places in the steel wire when wiring connections and a variety of curved lines by then.。
| Structural characteristics | |||||||||
| ■ The use of cast aluminum alloy shell or cast steel, spraying paint or galvanized surface treatment; | |||||||||
| ■ Diverse structure, easy to install; | |||||||||
| ■ Adjustable and customizable; | |||||||||
| Technical Data | |||||||||
| ■ Explosive gas environment: 1 zone, 2 zone, | |||||||||
| ■ Type of gas or steam: ⅡA, ⅡB, ⅡC | |||||||||
| ■ Implementation of standards: GB 3836.1, GB 3836.3，JB 9599 | |||||||||
| ■ Explosion-proof mark: Exe Ⅱ | |||||||||

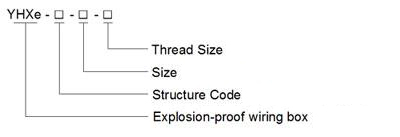

| Model specifications | |||||||||
| ■ Structure: | |||||||||
| Code | Type | Code | Type | ||||||
| E | All threading through | Y | Turn right pass threading box cover | ||||||
| T | Threading links box | H | Back bend threading pass box | ||||||
| S | Threading Stone Box | W | Bending threading pass box | ||||||
| Z | Threading pass bends left box cover | HT | Threading links box rear cover | ||||||
| ■ Specificationsand connecting thread | |||||||||
| Generally used to connect threaded pipe thread G, can be omitted, for the use of other threads to be marked such as the NPT, etc.。 | |||||||||
| Specifications | ThreadG | Specifications | ThreadG | ||||||
| 15 | G1/2 | 40 | G11/2 | ||||||
| 20 | G3/4 | 50 | G2 | ||||||
| 25 | G1 | 70 | G21/2 | ||||||
| 32 | G11/4 | 80 | G3 | ||||||
